所见即所得的markdown编辑器
Markdown软件对比
软件 | Typora | MarkText | vscode插件Office Viewer(Markdown Editor) |
浏览器端markdown编辑器vditor |
Obsidian |
---|---|---|---|---|---|
所见即所得 | 支持 | 支持 | 支持 | 支持 | 支持 |
左代码右预览 | 不支持 | 不支持 | 支持 | 支持 | 支持 |
第三方插件 | 支持(插件管理器的下载安装链接,但插件管理器bug多,社区不成熟) | 计划在 v1.0.0 发布之后添加插件机制,以及自定义主题 | 需要与其他vscode插件兼容 | 不支持 | 是 |
官方下载链接 | https://typora.io | https://www.marktext.cc | https://marketplace.visualstudio.com/items?itemName=cweijan.vscode-office | 在线工具: https://vditor.vercel.app ;支持本地部署,需要安装node | https://obsidian.md/ |
操作系统 | Mac、windows、Linux | Mac、windows、Linux | Mac、windows、Linux | 所有操作系统 | Mac、windows、Linux、iOS、安卓 |
开源否 | 2021年底前在beta版本期间开源、免费于https://github.com/typora;之后闭源、付费 | 开源 https://github.com/marktext/marktext | 开源 https://github.com/cweijan/vscode-office | 开源 https://github.com/Vanessa219/vditor | 闭源 |
收费否 | 过往版本(<=0.11.18版本)免费,之后版本付费,或去MacTorrents下载破解版 | 免费 | 免费 | 下同Office Viewer(Markdown Editor) ,因为其内核是vditor |
个人免费,商用组织收费 |
表格 | 支持 | 支持 | 支持 | 支持 | |
图 | 支持 | 支持 | 支持 | 支持 | |
公式 | 支持 | 支持 | 支持 | 支持 | |
内嵌html | 支持 | 支持 | 支持 | 支持 | |
中文界面 | 支持 | 原版不支持。请往汉化版官网,但这个版本无法在打开文件夹时向当中的markdown文件内插图。 | 不支持 | 支持,但界面汉化不充分 | |
流畅度 | 图/公式/字数多时卡顿 | 图/公式/字数多时流畅 | 图/公式/字数多时流畅 | ||
用 \tag{} 手动编号 |
支持 | 支持 | 支持 | 支持 | |
公式块中align或equation环境自动编号 | 支持 | 支持 | 支持 | 不支持(除非安装下述插件,但不能设置只给equation和align环境自动编号) | |
公式块全部自动编号 | 支持,可在Typora设置里勾选 | 不支持 | 不支持 | 支持(但需要安装插件MathLinks 和LaTeX-like Theorem & Equation Referencer ,可以设置仅被引用的公式会自动编号、或任何公式都自动编号) |
|
公式中使用\label \eqref \ref |
支持 | 不支持,整个公式块无法渲染 并报错 | 不支持,整个公式块能渲染,但这几条命令处渲染错误并报错 | 不支持?(偶尔能渲染正确,但一编辑公式,公式引用就报错) | |
在文件夹内显示*.textbundle |
不支持 | 支持 | 支持 | 支持,但无法打开 | |
直接打开*.textbundle |
支持(打开方式见下文说明) | 支持(打开方式同Typora) | 支持(无需额外设置) | 不支持,详见TextBundle support | |
向*.textbundle 插入图片 |
支持(需要配置插图自动复制到./assets ) |
支持不充分: 1. 原版:当设置插图路径为 assets 时:若打开一markdown文件,则把插图复制到此文件所在目录下的assets 子文件夹内;但若打开一文件夹,则复制插图到文件夹根目录下的assets 子文件夹内。详见 官方说明。2.汉化版:不管如何设置插图路径,在打开文件夹时,都无法向当中的markdown文件内插图 |
支持(需要配置插图自动复制到./assets ,即向vscode的用户配置文件添加:"vscode-office.pasterImgPath": "${workspaceDir}/assets/${now}.png", "vscode-office.workspacePathAsImageBasePath": true, ) |
不支持 | |
在文件夹内搜索文本 | 支持 | 支持 | 支持 | ||
打开.markdown .txt 文件 |
支持 | 支持 | 支持 | 支持(需要安装插件Custom File Extensions , 并设置{ "markdown": [ "", "md", "markdown", "txt", 等 ] } 表示这些后缀的文件都用markdown格式打开) |
|
打开任何位置的文件 | 支持 | 支持 | 支持 | 不支持(除非安装脚本) | |
sequence制图 | 支持 | 汉化版支持 | 不支持 | 不支持 | |
flow制图 | 支持 | 汉化版不支持 | 不支持 | 不支持 | |
mermaid制图 | 支持(但我的电脑上有bug,Typora 1.8.4,MacOS 10.15.7,会显示Painting Diagram ... ) |
汉化版支持 | 支持 | 支持 |
说明:
-
*.textbundle
的打开方式方式:-
Typora和MarkText打开
*.textbundle
的方式:-
在Typora和MarkText内,点
文件
-打开
(不论是以文件还是文件夹),无法打开*.textbundle
-
在
Finder
-单击右键-打开方式
-其它
-选择用Typora或MarkText打开,可以打开。 -
在
Finder
-单击右键-显示简介
-打开方式
-设置用Typora或MarkText打开,然后双击*.textbundle
,可以打开。 -
在终端,
open -a Typora或Marktext xxxx.textbundle
,可以打开。
-
-
在vscode(使用插件
Office Viewer(Markdown Editor)
)中,上述方法都能打开*.textbundle
。
-
-
vscode插件
Office Viewer(Markdown Editor)
插件的内核和前身:-
vscode插件
Markdown Editor
https://marketplace.visualstudio.com/items?itemName=zaaack.markdown-editor 在2021年后就不再更新发布了。不推荐使用。 -
vscode插件
Office Viewer(Markdown Editor)
集成了Markdown Editor
的功能,并且还支持office文档(ppt、word、excel)的预览。更新发布至今(2023年底)。推荐使用。 -
Markdown Editor
和Office Viewer(Markdown Editor)
的内核都是 浏览器端markdown编辑器vditor
。
-
Typora卡顿
解决Typora字数过多造成卡顿现象 https://blog.csdn.net/qq_46921028/article/details/131896316
win10上Typora卡顿的问题及其解决方案 https://blog.csdn.net/Mao_Jonah/article/details/120533879
解决KaTex不支持\label
\eqref
\ref
-
KaTex不打算官方支持
\label
\eqref
\ref
-
可以自行修改KaTex配置
本地html
参照 #2033 (comment)的思路 和 样例配置,有如下demo代码。新建文件demo.html
,将下面代码复制进去,然后用浏览器打开,
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-type" content="text/html; charset=utf-8"/>
<title>KaTeX-DOM Eq. Ref Test</title>
<link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/katex@0.12.0/dist/katex.min.css" integrity="sha384-AfEj0r4/OFrOo5t7NnNe46zW/tFgW6x/bCJG8FqQCEo3+Aro6EYUG4+cU+KJWu/X" crossorigin="anonymous">
<script defer src="https://cdn.jsdelivr.net/npm/katex@0.12.0/dist/katex.min.js" integrity="sha384-g7c+Jr9ZivxKLnZTDUhnkOnsh30B4H0rpLUpJ4jAIKs4fnJI+sEnkvrMWph2EDg4" crossorigin="anonymous"></script>
<script defer src="https://cdn.jsdelivr.net/npm/katex@0.12.0/dist/contrib/auto-render.min.js" integrity="sha384-mll67QQFJfxn0IYznZYonOWZ644AWYC+Pt2cHqMaRhXVrursRwvLnLaebdGIlYNa" crossorigin="anonymous"
onload="renderMathInElement(document.body);"></script>
<script src="main.js"></script>
<script>
document.addEventListener("DOMContentLoaded", function() {
renderMathInElement(document.body, {
// auto-render specific keys
delimiters: [
{left: '$$', right: '$$', display: true},
{left: '$', right: '$', display: false},
{left: '\\(', right: '\\)', display: false},
{left: '\\[', right: '\\]', display: true}
],
// render equation with bug
throwOnError : false,
// support eqref
trust: (context) => ['\\htmlId', '\\href'].includes(context.command),
macros: {
"\\eqref": "\\href{###1}{(\\text{#1})}",
"\\ref": "\\href{###1}{\\text{#1}}",
"\\label": "\\htmlId{#1}{}"
}
});
});
</script>
</head>
<body>
In Eq. $\eqref{eq:1}$ or $\ref{eq:1}$.<br/>
$$
\begin{aligned}
\sin 2\theta = 2\sin \theta \cos \theta \\ = \cfrac{2 \tan \theta}{1+\tan^2 \theta}
\end{aligned}
\label{eq:1} \tag{1}
$$
</body>
</html>

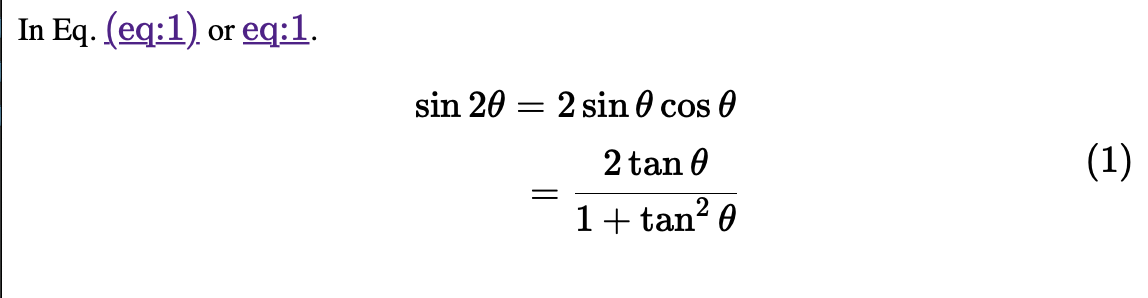

渲染结果如下:
但本法有个缺点: $\ref{eq:1}$
$\eqref{eq:1}$
渲染为’eq:1’而非 ‘1’(即公式编号)。不知是否有方法修补此bug?或是否有其他支持\label \ref \eqref的方法可避免此bug?
vscode插件Markdown+Math
安装vscode插件: Markdown+Math
Reference: KaTeX/KaTeX#2003 (comment)
在vscode的配置文件中加入如下配置,则vscode的自带markdown分栏预览就能支持\label
\eqref
\ref

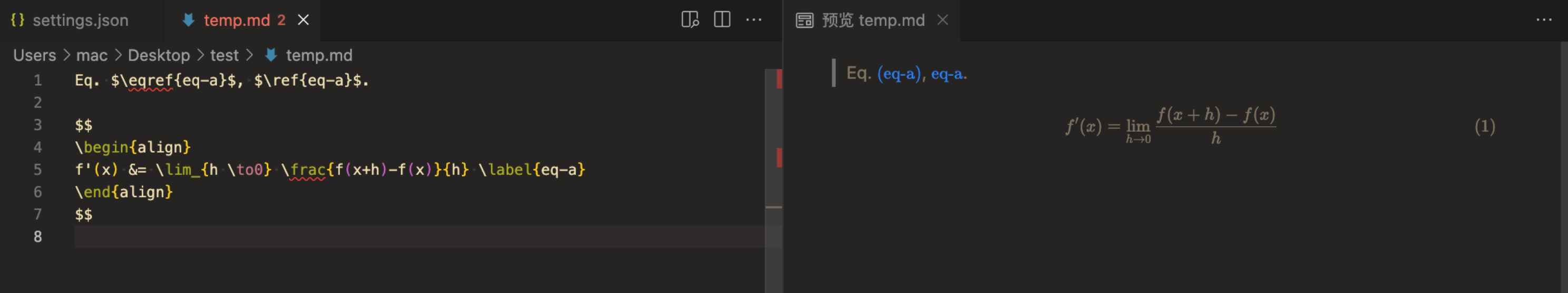

,效果见下图
"mdmath.katexoptions": {
"trust": "(context) => ['\\htmlId', '\\href'].includes(context.command)"
},
"mdmath.macros": {
"\\eqref": "\\href{###1}{(\\text{#1})}",
"\\ref": "\\href{###1}{\\text{#1}}",
"\\label": "\\htmlId{#1}{}"
},
相关讨论:
-
KaTex issue: Support \eqref and \label https://github.com/KaTeX/KaTeX/issues/2003
-
Referencing formula numbers in articles https://github.com/falgon/roki-web/issues/34
-
vscode-markdown公式引用:https://github.com/yzhang-gh/vscode-markdown/issues/985
-
https://github.com/yzhang-gh/vscode-markdown/issues/985#issuecomment-1108580333
由于这是非官方的做法,不太可能加入到正式支持之中,但是你可以自行修改插件的本地文件在
$HOME/.vscode/extensions/yzhang.markdown-all-in-one-3.4.x/dist/extension.js
中搜索l={throwOnError:!1}
并替换为l={throwOnError:!1, trust: true}
我的github评论:
